Battery Cover Bolts

[weefatbob]

Does anyone know the part number for the 2 screws that secure the battery cover at the top, under the seat, I have looked every where and cannot source it? Thanks



[Justjake]

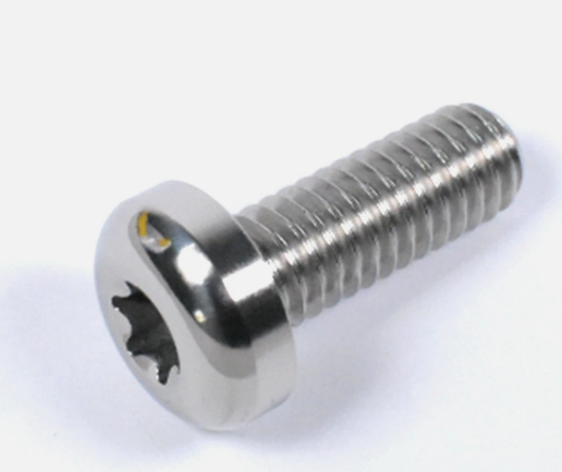

10201381, they are self tapping screws



[weefatbob]

Thanks for reply, but the ones on other side look like hex bolts, a screw is on the bottom, underneath, of battery cover



[Justjake]

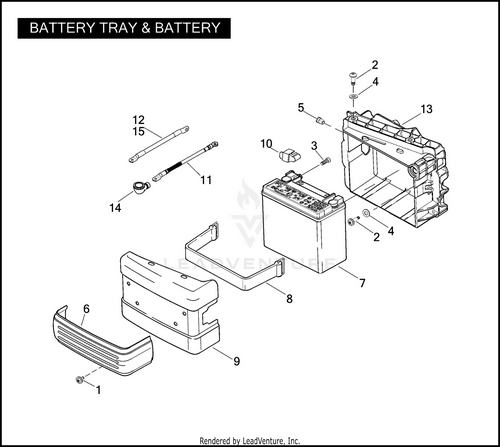

Here is an exploded view of your battery box, pick out the bolts in question



[weefatbob]

View attachment 19856
Here is an exploded view of your battery box, pick out the bolts in question

Thats the diagram, I found, they not on there its the ones that go in the top holes in number 9, I'll get a picture tomorrow and post it up



[Justjake]

There are no bolts @ #9, what is it you are trying to do?

I had an 07 Streetbob, there is only the screw @ the bottom and the dimples @ #9 holding the cover on if that is what you are thinking of

My 07 Factory Service manual shows the same diagram that I uploaded
